IslandOutdoorLLC.comLavaLock® 36 x 17.5 Baffle Plate Horizontal BBQ Smoker (Tuning System)
Our Custom Tuning Plates for Horizontal Smokers simply rock!
This baffle plate also fits 20 x 40 Lyfe Tyme smoker

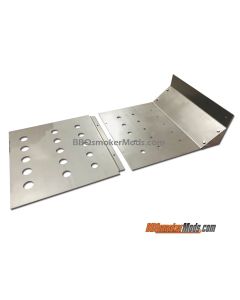

This plate is 36" x 17.5", includes side triangle ears (for better draft control).
Laser cut and computer designed with air flow rate calculations.
These plates will result in PERFECT side to side balanced cook chamber temps.
Allows for precise temperature control, perfect cooks and reduced fuel consumption.
An excellent mod! Easy installation with just a couple of bolts. Get them while they are hot.

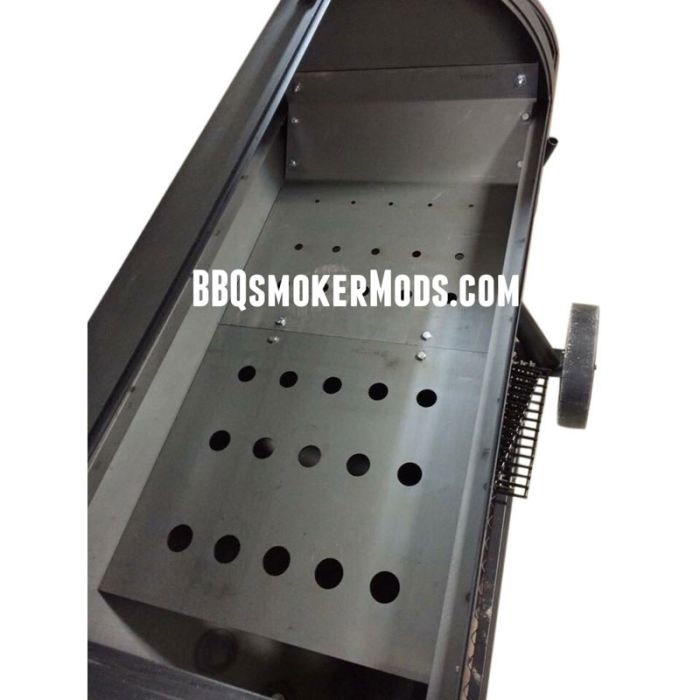

Installation Notes
STEP 1: Please look for a baffle that is approximately 2 inches narrower than your barrel (for example, if your cook chamber is 18" deep, front to back, you should start by looking for a 16" wide baffle).
STEP 2: Make a cardboard template:
1) Cut a piece of cardboard 17.5" wide & approx. 36" long.
2) Score two creases in the cardboard. The first one should be at 2-1/4". The second one should be approx 7" from the same end.
3) Bend the second crease to approx 45 degree angle. Bend the first crease to a vertical position (should emulate our baffle angles in the picture)
Note: Completed template height should be about 5.5". Overall length 36, width 17.5.
4)The vertical flange should sit flush with the top of the fire box opening.
The plate will sit about 3.5" below the top of the fire box opening.
If the cardboard sits where you want it, without touching anything like the grill, lid, or any other obstructions, then this plate will very likely fit.
Non-returnable after use or modification.
Not guaranteed to fit your smoker, buy responsible for return shipping and/or possible restock fee.
-
Ric Bogart asks
Will this fit in the Oklahoma Joe Highland?
1 people already voted for this question.
-
Hi, Please see the link below for the Highland baffle plate. Thanks & have a good day!
https://bbqsmokermods.com/oem-smoker-mods-by-brand/oklahoma-joe-s/highland.html1 people found this answer helpful.
-
-
JAMES GORDON asks
With this plate installed is there a need for the exhaust lowering mod?
-
The lowering kit is not recommended to be used with the baffle plate. It restricts the air flow. Thank you
1 people found this answer helpful.
-
-
Richard Meyer asks
Is it steel or stainless steel
-
Hello, This is steel. Thank you for your interest, have a good day.
https://bbqsmokermods.com/lavalockr-36-x-17-5-baffle-plate-horizontal-bbq-smoker-tuning-system.html1 people found this answer helpful.
-
-
Taianui GOUBREY asks
It come in 2 separate pieces ?
-
<p>It does. It makes cleaning and or adjustments of this smoker baffle simple!</p>
-
-
Taianui GOUBREY asks
How much is weight ?
-
<p>approx 21 pounds</p>
-
-
