IslandOutdoorLLC.comLavaLock® 37 x 14.5 Baffle Plate Horizontal BBQ Smoker (Tuning System)

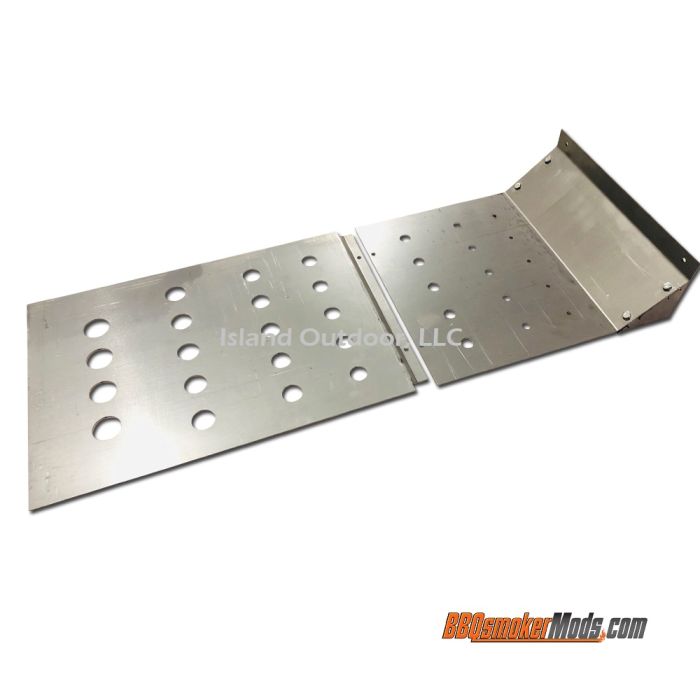

This plate is 37" x 14.5", includes side triangle ears (for better draft control).
Laser cut and computer designed with air flow rate calculations.
These plates will result in PERFECT side to side balanced cook chamber temps.
Allows for precise temperature control, perfect cooks and reduced fuel consumption.
An excellent mod! Easy installation with just a couple of bolts. Get them while they are hot.
Installation Notes
To help determine if this baffle will fit your smoker:
STEP 1: Please look for a baffle that is approximately 2 inches narrower than your barrel (for example, if your cook chamber is 18" deep, front to back, you should start by looking for a 16" wide baffle).
STEP 2: Make a cardboard template:
1) Cut a piece of cardboard 14.5" wide & approx. 40" long.
2) Score two creases in the cardboard. The first one should be at 1-1/8". The second one should be aprrox 6" from the same end.
3) Bend the second crease to approx 45 degree angle. Bend the first crease to a vertical position (should emulate our baffle angles in the picture)
Note: Completed template height should be about 4.5". Overall length 37, width 14.5.
4)The vertical flange should sit flush with the top of the fire box opening.
The plate will sit about 3.5" below the fire box opening.
If the cardboard sits where you want it, without touching anything like the grill, lid, or any other obstructions, then this plate will very likely fit.
Non-returnable after use or modification.
| Variant | 1 |
|---|
-
Frank Nelson asks
I am looking for a tuning plate to fit my smoker. The max diameter is 16.5"
Length is 34.75" and circumference is 52.5" I made the 14.5" template. The width fits perfectly but there is no way the length is going to go. Is there a shorter version of this plate.-
<p>HI there, since it is a 2 peice baffle, you can overlap it. You could also just remove the flat plate, or shorten the flat plate if you can cut it. </p>
-
-
Jeff Potter asks
Will these tuning plates fit an Old Country Wrangler Smoker without modification
-
<p>What are the dimensions of the cook chamber on your wrangler? thank you </p>
-
-
Gregg Floyd asks
Will this fit a Kingsford professional series smoker??
-
<p><strong>To help determine if this baffle will fit your smoker:<br /> <br /> STEP 1: </strong><span>Please look for a baffle that is approximately </span><strong>2 inches narrower</strong><span> than your barrel </span><em>(for example, if your cook chamber is 18" deep, front to back, you should start by looking for a 16" wide baffle).</em><br /><strong><br /> </strong><strong>STEP 2: Ma</strong><strong>ke a cardboard template:</strong><br /><span> 1) Cut a piece of cardboard 14.5" wide & approx. 40" long. </span><br /><span> 2) Score two creases in the cardboard. The first one should be at 1-1/8". The second one should be aprrox 6" from the same end. </span><br /><span> 3) Bend the second crease to approx 45 degree angle. Bend the first crease to a vertical position (should emulate our baffle angles in the picture)</span><br /><span> Note: Completed template height should be about 4.5". Overall length 37, width 14.5.</span><br /><span> 4)The vertical flange should sit flush with the top of the fire box opening. </span><br /><span> The plate will sit about 3.5" below the fire box opening. </span><br /><span> If the cardboard sits where you want it, without touching anything like the grill, lid, or any other obstructions, then this plate will very likely fit.</span><strong><br /> </strong></p>
-
